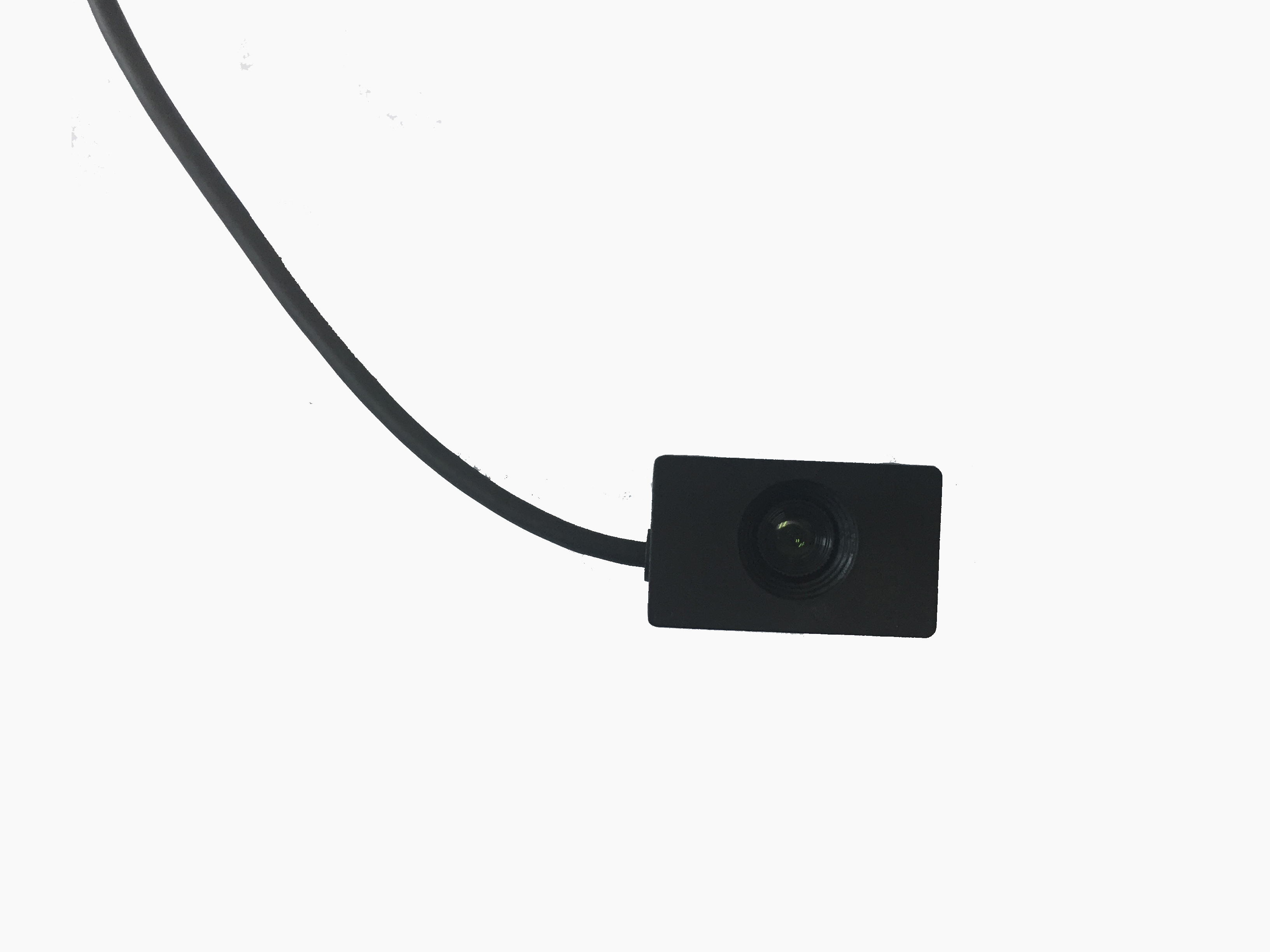

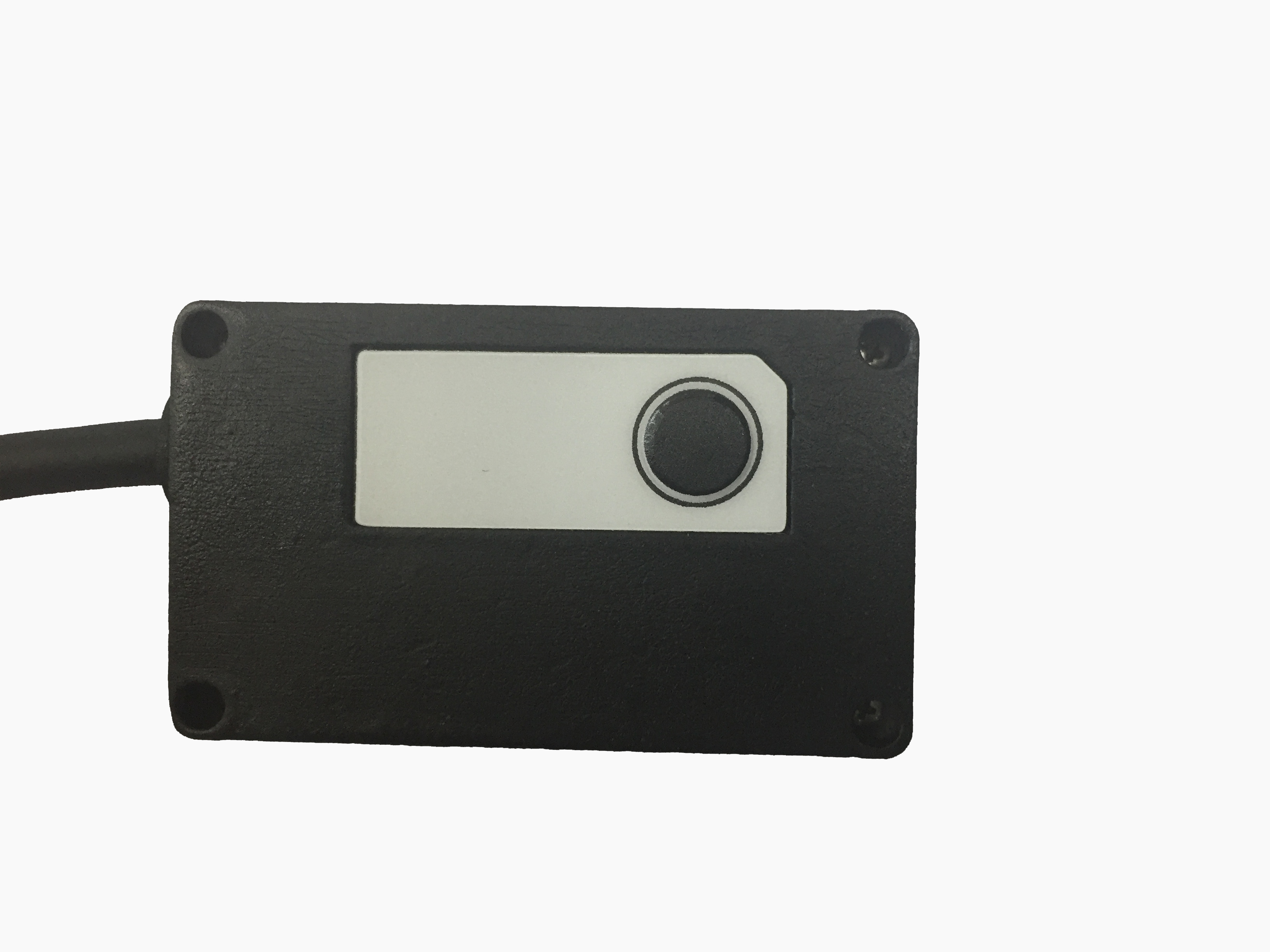

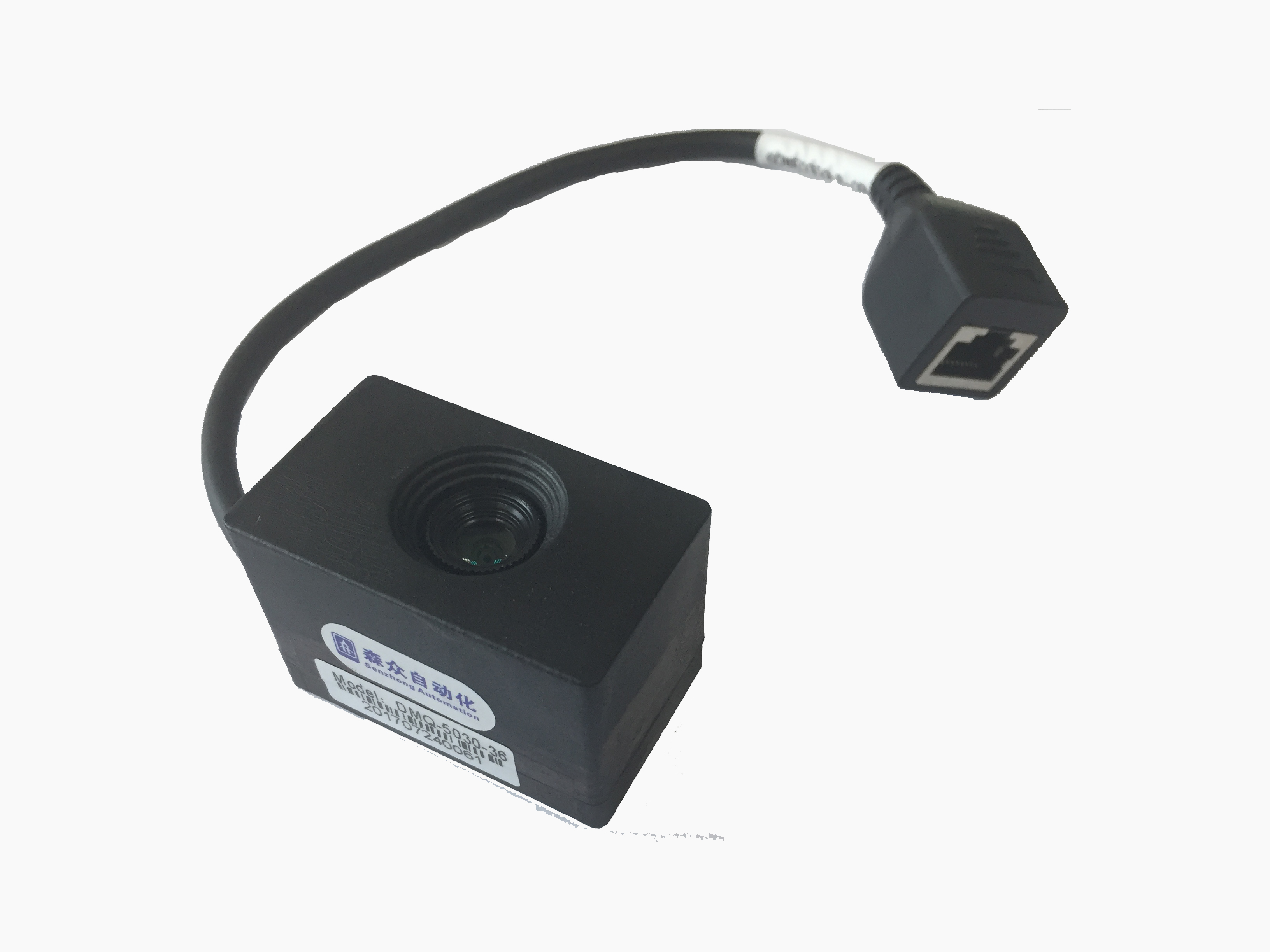

智能相机
智能相机
产品型号:DMQ-5030-36
产品描述:
  • 详细介绍

物理特性/Physical Characteristics
Dimensions: 50mm×30mm×35mm
Weight: 145.5g
Voltage and Current: 5 VDC
Current: 220mA
扫描特性/Performance Characteristics
Light Source: illumination:5600K LED
Field of View: 80°(H)×60°(V)
Roll / Pitch / Yaw: 360°,±65°,±60°
Print Contrast: 20%minimum reflective difference
解码能力/Symbology Decode Capability
1-D:

UPC/EAN,UPC/EAN with supplementals,Bookland EAN,ISSN,UCC Coupon

Extended Code,Code128,GS1-128,ISBT 128,Code 39,Code 39 Full ASCII,

Trioptic Code39,Code32,Code93,Code11,Matrix 2 of 5,Interleaved 2 of 5,

Discrete 2 of 5,Codabar,MSI,Chinese 2 of 5,GS1 DataBar variants,Korean

3 of 5,ISBT Concat

2-D: PDF417,MicroPDF417,Composite Codes,Data Matrix,Maxicode,QR Code,MicroQR,Aztec
Minimum Resolution 5 mil Code39
Interfaces Supported: USB,RS232
用户环境/User Environment
Operating Temperature: 32°to 122°F / -20°to 50℃
Storage Temperature: -40°to 158°F / -40°to 70℃
Humidity: 5%to 95%,non-condensing
Drop/Shock Specifications: Withstands 10Gs 0.06" double amp
Ambient Light Immunity:

Immune to indoor lighting up to 1600 Lux.Immune to sunlight up to 86000 Lux.
